Our Products

test
test product
VIEW DETAILS

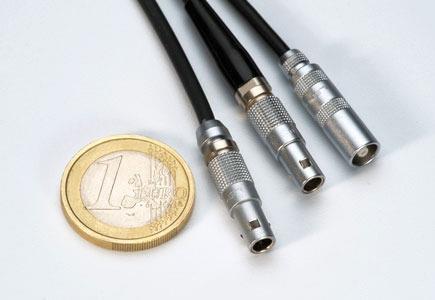

LEMO 00 Series connector is an coaxial 50 ohms self latching connector, the basis of the NIM-CAMAC standard.Main Features:Push-Pull self-latchingOver 40 shell stylesTemp. range -55°C to 250°CShielding: >90dB at 10Mhz, >70dB at 1 GhzSolder or crimp contactsIP50Contact configurations:Coaxial 50 ohms.Triaxial
LEMO Miniature Coaxial Connectors:
VIEW DETAILS

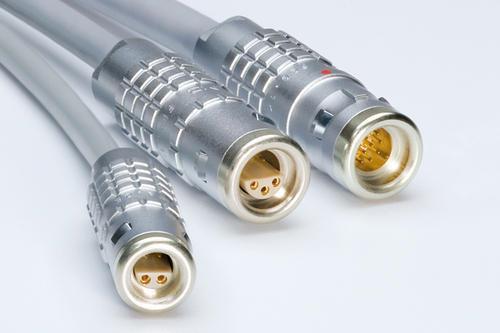

LEMO E-Series watertight self-latching connectors with stepped inserts for alignment (of multipole version) & rugged housing for extreme working conditions. Main Features:Push-Pull self-latching7 sizesMultipole with stepped insertsOver 22 shell stylesUL recognizedTemp. range -55 deg C to 200 deg CSolder, crimp or print contactsIP66/IP68Contact Configurations:UnipoleCoaxial 50 ohms and 75 ohmsTriaxial 50 and 75 ohmsHigh VoltageMultipole 2 to 106 contactsMulti or mixed contacts with:Coaxial 1 to 8 contactsHigh voltage 1 to 8 contactsThermocouple 2 to 6 contactsAdditional Information:Item Code: LEMO-E-Series
LEMO Watertight Connectors - E Series:
VIEW DETAILS

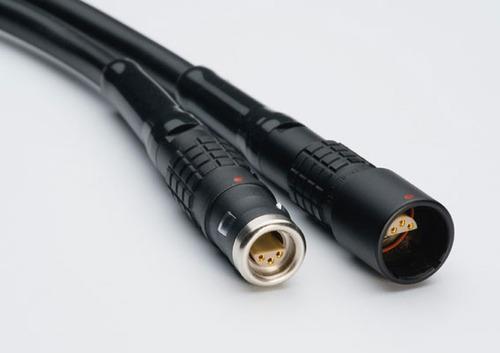

LEMO H-Series connectors are gender less connectors with patented push-pull hermaphroditic self-latching system.Main features:Push-Pull self-latching2 sizesHermaphroditic blind matingOver 4 shell stylesTemp. range -55°C to 125°CSolder or crimp contactsDark finishAluminium alloy shellIP50/IP68Contact configurations:Multipole 6 or 12 contactsMulti or mixed contacts with:Fibre optic 2, 4 or 6 contactsAdditional Information:Item Code: LEMO-H-Series
LEMO Military (Harsh Environment) Conn
VIEW DETAILS

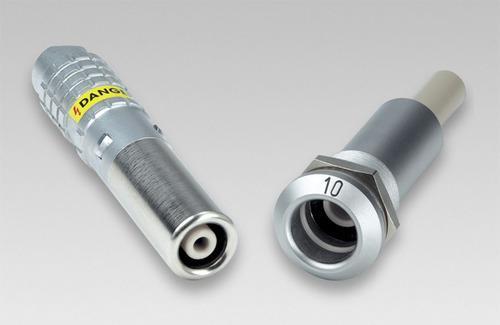

LEMO Y-Series single contact self-latching high voltage connector with test voltages from 5 to 70 KV DC. Main Features:Push-Pull self-latching3 sizesTest voltage from 5 to 70KV d.c.Solder contactsTemp. range -55 Deg C to 250 Deg COptional safety locking deviceIP50Contact Configurations:Single HV Contact Additional Information:Item Code: LEMO-Y-Series
LEMO High Voltage Connectors:
VIEW DETAILS

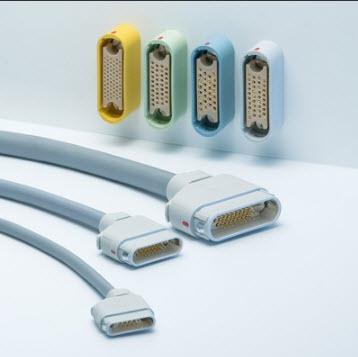

R Series connectors are rectangular self-latching connectors with plastic shell.Main Features:Push-Pull self-latching 3 sizesIP502 keying optionsAvailable in 4 colours5 shell stylesTemp range -30 deg C to 150 deg CCompact and lightweight Solder, crimp or print contactsContact configurations:Multipole 10 to 65 contactsMixed contacts with:Coaxial 1 to 8 contactsFluidic 1 to 8 contactsHigh voltage 1 to 8 contacts
Plastic Connectors - R Series
VIEW DETAILS

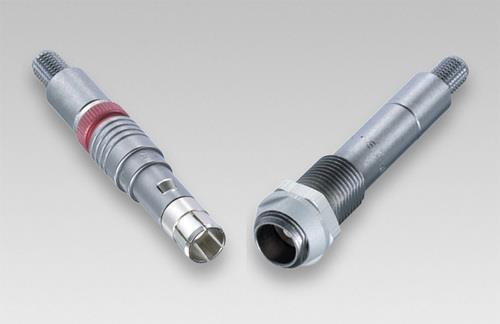

LEMO 05 Series is miniature single contact high voltage self-latching connector with a test voltage of 12kV d.c. Main features:Push-pull self latchingTest voltage of 12kV DCOver 2 shell stylesTemp. range - 20 Deg C to 125 Deg CSafety locking deviceCrimp contactsAluminium alloy shellIP50Contact Configurations:Single HV contactAdditional Information:Item Code: LEMO-05-Series
LEMO High Voltage Connectors (Miniatur
VIEW DETAILS

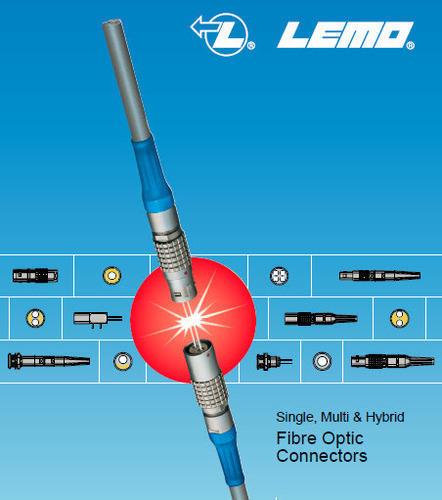

LEMO offers a full range of mixed electrical/fibre optic connectors for singlemode or multimode transmission. This product range is available with metal or plastic outer shells, as well as in a watertight version. The range is completed by the addition of a single channel fibre optic connector series. All LEMO fibre optic connectors use a plug and socket push-pull self-latching connection system, obviating the need for plug to plug adaptors. This is a major advantage of the LEMO technology over its competitors.LEMO connectors feature ceramic or metal ferrules for the fibre optic contacts to provide alignment for both single-mode and multi-mode fibres. They are manufactured to the highest precision in order to ensure optimum optical performances even in the most severe applications. Connectors available:Fibre optic single-modeFibre optic multi-modeMixed fibre optic + LVMixed fibre optic + coax + LVwith plastic outer shellwith aluminium outer shellWith stainless steel outer shellAdditional Information:Item Code: Fiber-optic-connectors
Fiber Optic Cable Connectors
VIEW DETAILS
LEMO W-Series srew coupling underwater connectors with alignment key suitable for pressure upto 30 bars.Main Features:Screw coupling4 keying optionsIP686 sizesOver 9 shell stylesTemp. range -20 Deg C to 200 Deg CSolder or crimp contactsRugged housingContact Configurations:Multipole 2 to 64 contactsThermocouple 2 to 6 contactsFibre opticMulti or mixed contacts with:Co-axial 1 to 14 contactsFluidic 1 to 14 contactsFibre optic 1 to 14 contactsAdditional Information:Item Code: LEMO-W-Series
LEMO High Pressure Connectors - W Seri
VIEW DETAILS

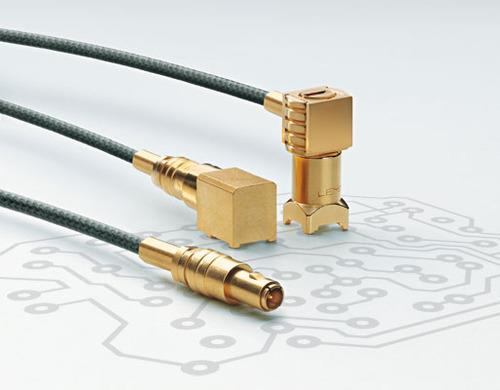

LEMO 01 Series is the smallest self-latching coaxial 50 ohms.connector.Main Features:Push-Pull self-latchingOver 15 shell stylesTemp. range -55°C to 230°CShieldedSolder or print contactsIP50Contact configurations:Coaxial 50 ohms.Additional Information:Item Code: LEMO-01-Series
LEMO Miniature Coaxial Connectors
VIEW DETAILS

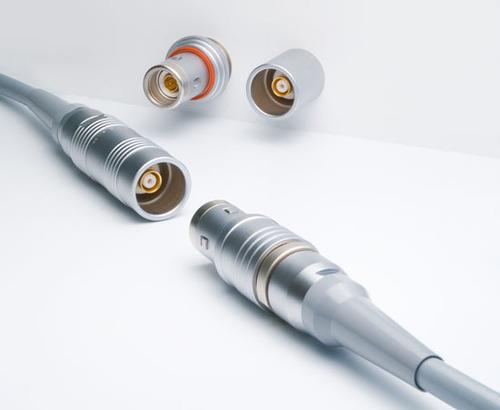

Waterprotected self-latching triaxial connectors for TV camera applications. (US Standards)Main Features: Push-pull self-latchingOver 10 shell stylesTemp. range -55 Deg C to 200 Deg CShieldedIP61Contact Configurations: Triaxial 75 OhmsAdditional Information:Item Code: LEMO-4A-Series
LEMO Audio-Video Connectors
VIEW DETAILS

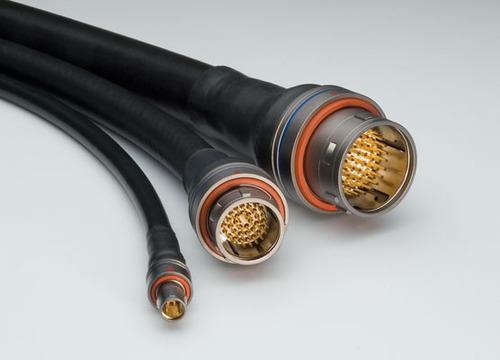

Compact self-latching multipole connectors, with multiple alignment keys, for harsh environment.Main features:Push-pull self-latching8 sizes4 keying optionsCompact & lightweightOver 12 shell stylesTemp. range -50°C to 200°CShieldedCrimp or print contactsHigh vibration resistanceHigh shock resistanceDark finishIP67Contact configurations:Multipole 2 to 68 contactsMulti or mixed contacts with:Fibre optic 2 contactsOther mixed versions upon requestAdditional Information:Item Code: LEMO-F-Series
LEMO Military (Harsh Environment) Conn
VIEW DETAILS

Filter using tags

test
View Details
test product
LEMO 00 Series connector is an coaxial 50 ohms self latching connector, the basis of the NIM-CAMAC standard.Main Features:Push-Pull self-latchingOver 40 shell stylesTemp. range -55°C to 250°CShielding: >90dB at 10Mhz, >70dB at 1 GhzSolder or crimp contactsIP50Contact configurations:Coaxial 50 ohms.Triaxial
View Details
LEMO Miniature Coaxial C
LEMO E-Series watertight self-latching connectors with stepped inserts for alignment (of multipole version) & rugged housing for extreme working conditions. Main Features:Push-Pull self-latching7 sizesMultipole with stepped insertsOver 22 shell stylesUL recognizedTemp. range -55 deg C to 200 deg CSolder, crimp or print contactsIP66/IP68Contact Configurations:UnipoleCoaxial 50 ohms and 75 ohmsTriaxial 50 and 75 ohmsHigh VoltageMultipole 2 to 106 contactsMulti or mixed contacts with:Coaxial 1 to 8 contactsHigh voltage 1 to 8 contactsThermocouple 2 to 6 contactsAdditional Information:Item Code: LEMO-E-Series
View Details
LEMO Watertight Connecto
LEMO H-Series connectors are gender less connectors with patented push-pull hermaphroditic self-latching system.Main features:Push-Pull self-latching2 sizesHermaphroditic blind matingOver 4 shell stylesTemp. range -55°C to 125°CSolder or crimp contactsDark finishAluminium alloy shellIP50/IP68Contact configurations:Multipole 6 or 12 contactsMulti or mixed contacts with:Fibre optic 2, 4 or 6 contactsAdditional Information:Item Code: LEMO-H-Series
View Details
LEMO Military (Harsh Env
LEMO Y-Series single contact self-latching high voltage connector with test voltages from 5 to 70 KV DC. Main Features:Push-Pull self-latching3 sizesTest voltage from 5 to 70KV d.c.Solder contactsTemp. range -55 Deg C to 250 Deg COptional safety locking deviceIP50Contact Configurations:Single HV Contact Additional Information:Item Code: LEMO-Y-Series
View Details
LEMO High Voltage Connec
R Series connectors are rectangular self-latching connectors with plastic shell.Main Features:Push-Pull self-latching 3 sizesIP502 keying optionsAvailable in 4 colours5 shell stylesTemp range -30 deg C to 150 deg CCompact and lightweight Solder, crimp or print contactsContact configurations:Multipole 10 to 65 contactsMixed contacts with:Coaxial 1 to 8 contactsFluidic 1 to 8 contactsHigh voltage 1 to 8 contacts
View Details
Plastic Connectors - R S
LEMO 05 Series is miniature single contact high voltage self-latching connector with a test voltage of 12kV d.c. Main features:Push-pull self latchingTest voltage of 12kV DCOver 2 shell stylesTemp. range - 20 Deg C to 125 Deg CSafety locking deviceCrimp contactsAluminium alloy shellIP50Contact Configurations:Single HV contactAdditional Information:Item Code: LEMO-05-Series
View Details
LEMO High Voltage Connec
LEMO offers a full range of mixed electrical/fibre optic connectors for singlemode or multimode transmission. This product range is available with metal or plastic outer shells, as well as in a watertight version. The range is completed by the addition of a single channel fibre optic connector series. All LEMO fibre optic connectors use a plug and socket push-pull self-latching connection system, obviating the need for plug to plug adaptors. This is a major advantage of the LEMO technology over its competitors.LEMO connectors feature ceramic or metal ferrules for the fibre optic contacts to provide alignment for both single-mode and multi-mode fibres. They are manufactured to the highest precision in order to ensure optimum optical performances even in the most severe applications. Connectors available:Fibre optic single-modeFibre optic multi-modeMixed fibre optic + LVMixed fibre optic + coax + LVwith plastic outer shellwith aluminium outer shellWith stainless steel outer shellAdditional Information:Item Code: Fiber-optic-connectors
View Details
Fiber Optic Cable Connec
LEMO W-Series srew coupling underwater connectors with alignment key suitable for pressure upto 30 bars.Main Features:Screw coupling4 keying optionsIP686 sizesOver 9 shell stylesTemp. range -20 Deg C to 200 Deg CSolder or crimp contactsRugged housingContact Configurations:Multipole 2 to 64 contactsThermocouple 2 to 6 contactsFibre opticMulti or mixed contacts with:Co-axial 1 to 14 contactsFluidic 1 to 14 contactsFibre optic 1 to 14 contactsAdditional Information:Item Code: LEMO-W-Series
View Details
LEMO High Pressure Conne
LEMO 01 Series is the smallest self-latching coaxial 50 ohms.connector.Main Features:Push-Pull self-latchingOver 15 shell stylesTemp. range -55°C to 230°CShieldedSolder or print contactsIP50Contact configurations:Coaxial 50 ohms.Additional Information:Item Code: LEMO-01-Series
View Details
LEMO Miniature Coaxial C
Waterprotected self-latching triaxial connectors for TV camera applications. (US Standards)Main Features: Push-pull self-latchingOver 10 shell stylesTemp. range -55 Deg C to 200 Deg CShieldedIP61Contact Configurations: Triaxial 75 OhmsAdditional Information:Item Code: LEMO-4A-Series
View Details
LEMO Audio-Video Connect
Compact self-latching multipole connectors, with multiple alignment keys, for harsh environment.Main features:Push-pull self-latching8 sizes4 keying optionsCompact & lightweightOver 12 shell stylesTemp. range -50°C to 200°CShieldedCrimp or print contactsHigh vibration resistanceHigh shock resistanceDark finishIP67Contact configurations:Multipole 2 to 68 contactsMulti or mixed contacts with:Fibre optic 2 contactsOther mixed versions upon requestAdditional Information:Item Code: LEMO-F-Series
View Details
LEMO Military (Harsh Env
