Manufacturing test

Home Products

Our Products

LEMO W-Series srew coupling underwater connectors with alignment key suitable for pressure upto 30 bars.Main Features:Screw coupling4 keying optionsIP686 sizesOver 9 shell stylesTemp. range -20 Deg C to 200 Deg CSolder or crimp contactsRugged housingContact Configurations:Multipole 2 to 64 contactsThermocouple 2 to 6 contactsFibre opticMulti or mixed contacts with:Co-axial 1 to 14 contactsFluidic 1 to 14 contactsFibre optic 1 to 14 contactsAdditional Information:Item Code: LEMO-W-Series
LEMO High Pressure Connectors - W Seri
VIEW DETAILS
V series connectors are screw coupling underwater connectors with stepped inserts for alignment suitable for pressure up to 30 bar (435.11 PSI).Main Features:Screw couplingMultipole with stepped insertsIP686 sizesOver 9 shell stylesTemp. range -20 deg C to 200 deg CSolder contactsRugged housingContact Configuration:UnipoleCoaxial 50 or 75 ohms.Multipole 2 to 48 contactsTriaxial 50 or 75 ohms.Multi or mixed contacts with:Coaxial 1 to 4 contactsAdditional Information:Item Code: LEMO-V-Series
LEMO High Pressure Connectors - V Seri
VIEW DETAILS
LEMO B-Series connectors are standard self-latching multipole connectors with alignment keys.Main Features:Push-Pull self-latchingIP 508 sizes13 keying options9 colour codingOver 60 shell stylesUL recognizedTemp. range -55 deg C to 250 deg CSolder, crimp or print contactsContact Configurations:Multipole 2 to 64 contactsThermocouple 2 to 64 contactsFibre opticFluidicMulti or mixed contacts with:Coaxial 1 to 14 contactsFluidic 1 to 14 contactsHigh voltage 2 to 21 contactsFibre optic 1 to 14 contactsAdditional Information:Item Code: LEMO-B-Series
LEMO Multipole Connectors - B Series:
VIEW DETAILS
REDEL P-Series self-latching plastic connectors with alignment key for medical applications.Main feature:Push-pull self-latching3 sizesSeveral keying options6 colour codingsOver 12 shell stylesTemp. range -50 deg C to 170 deg CIP 64/66 optionsWhite,gray or black outershellIP50Contact Configurations:Multipole 2 to 34 contactsVoltage mainsFluidicMixed contacts in 2P and 3P series with:Coaxial 1 contactHigh voltage 1 contactFiber optic 1 contactFluidic 1 or 3 contactsAdditional Information:Item Code: Redel-P-Series
REDEL Plastic Connectors:
VIEW DETAILS

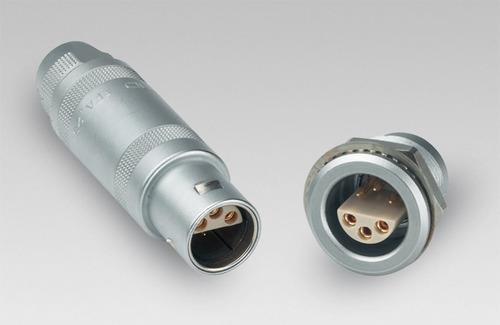

LEMO S-Series connectors are the original standard self-latching connectors with stepped inserts for alignment (of multipole version).Main Features:Push-Pull self-latching8 sizesMultipole with stepped inserts9 colour codingOver 50 shell stylesUL recognizedTemp. range -55 deg C to 250 deg CSolder, crimp or print contactsIP 50Contact Configurations:UnipoleCoaxial 50 & 75 ohms.Multipole 2 to 106 contactsTriaxial 50 & 75 ohms.High voltageThermocouple 2 to 6 contactsMulti or mixed contacts with:Coaxial 1 to 8 contactsHigh voltage 2 to 8 contactsAdditional Information:Item Code: LEMO-S-series
LEMO Multipole Connectors - S series:
VIEW DETAILS

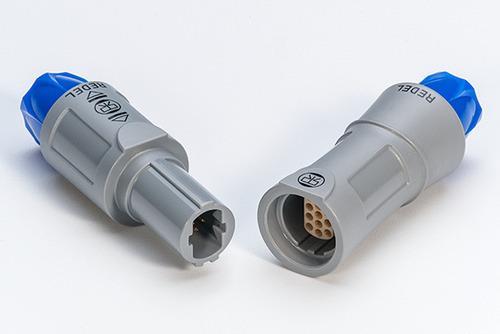

REDEL SP connectors are plastic Push-pull connectors. These circular plastic connectors are especially adapted for applications such as medical electronics and test & measurement. The SP series offer additional features: the latch sleeve is recessed into the connector body ensuring greater shock resistance of the product.Outershell of the connector is in Proprietary sulfone & it enables extensive sterilisation cycles of the product. Features & Benefits:Plastic shell made of Proprietary sulfoneBlind mating, scoop proofExtended resistance to sterilisationIncreased resistance to shockApplications:Medical electronicsTest & measurementIndustrial electronicsAutomotiveAdditional Information:Item Code: REDEL-SP-SeriesJune 6, 2017
REDEL Plastic Connectors - SP Series:
VIEW DETAILS

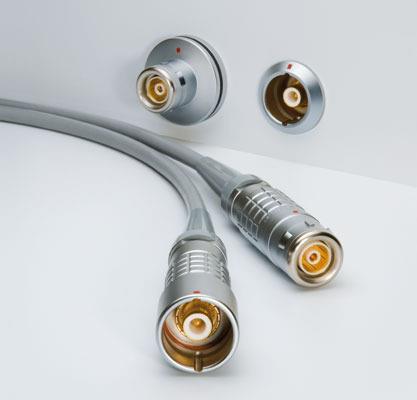

Watertight self-latching triaxial connectors with alignment key for TV camera applications. (UK Standards)Main Features: Push-pull self-latchingkeyingOver 10 shell stylesTemp. range -55 Deg C to 200 Deg CShieldedIP66Contact Configurations: Triaxial 50 & 75 OhmsAdditional Information:Item Code: LEMO-4M-Series
LEMO Audio-Video Connectors:
VIEW DETAILS

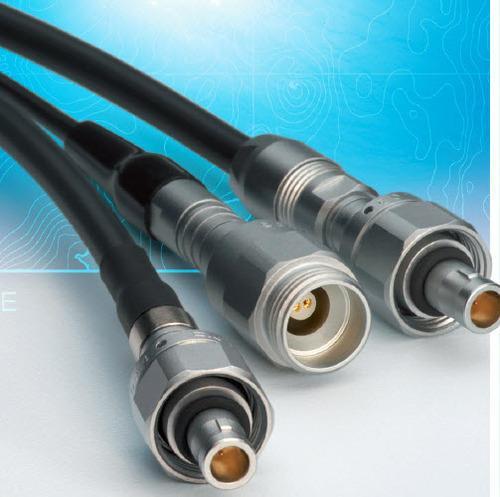

LEMO 03 Series screw coupling miniature underwater connectors suitable for pressure upto 60 bars.Main Features:Screw coupling2 keying options for multipoleIP68Over 20 shell stylesTemp. range -55 Deg C to 200 Deg CSolder or crimp contactsRugged housingContact Configurations: Multipole 2 to 4 contactsCoaxial 50 ohms.Additional Information:Item Code: LEMO-03-Series
LEMO High Pressure Connector - 03 Seri
VIEW DETAILS
LEMO offers a full range of mixed electrical/fibre optic connectors for singlemode or multimode transmission. This product range is available with metal or plastic outer shells, as well as in a watertight version. The range is completed by the addition of a single channel fibre optic connector series. All LEMO fibre optic connectors use a plug and socket push-pull self-latching connection system, obviating the need for plug to plug adaptors. This is a major advantage of the LEMO technology over its competitors.LEMO connectors feature ceramic or metal ferrules for the fibre optic contacts to provide alignment for both single-mode and multi-mode fibres. They are manufactured to the highest precision in order to ensure optimum optical performances even in the most severe applications. Connectors available:Fibre optic single-modeFibre optic multi-modeMixed fibre optic + LVMixed fibre optic + coax + LVwith plastic outer shellwith aluminium outer shellWith stainless steel outer shellAdditional Information:Item Code: Fiber-optic-connectors
Fiber Optic Cable Connectors:
VIEW DETAILS

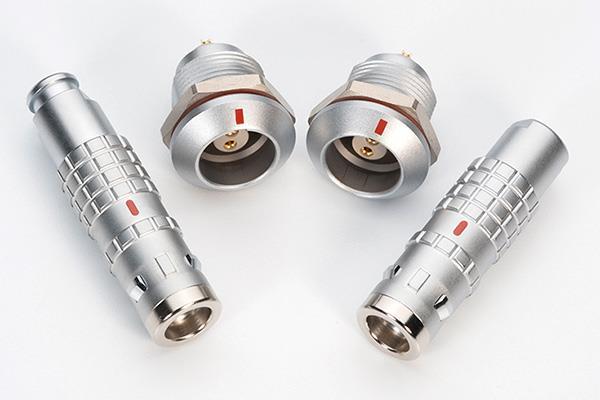

LEMO K-Series watertight self-latching multipole connectors with alignment key & rugged housing for extreme working conditions.Main Features:Push-Pull self-latching6 sizes9 keying options9 colour codingOver 28 shell stylesUL recognizedTemp. range -55 deg C to 250 deg CSolder, crimp or print contactsIP66/IP68Contact Configurations:Multipole 2 to 64 contactsThermocouple 2 to 64 contactsFibre opticMulti or mixed contacts with:Coaxial 1 to 14 contactsFluidic 1 to 14 contactsHigh voltage 1 to 21 contactsFibre optic 1 to 14 contactsAdditional Information:Item Code: LEMO-K-Series
LEMO Watertight Connectors- K Series:
VIEW DETAILS

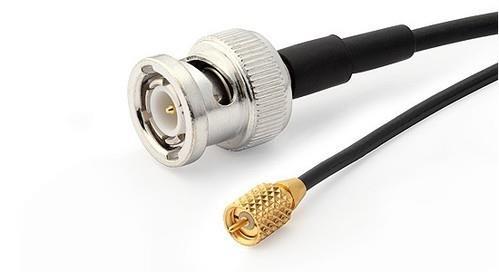

Wholesale Distributor & Distributor of Microdot Cable. Our product range also comprises of LEMO Self-latching Push-Pull Connectors, Plastic Connectors and Power Connectors. We are one of the known supplier of Microdot Cable.
Microdot Cable:
VIEW DETAILS
The LEMO SERBAL is a 4 channel multiplexer that makes HD/SDI to fibre conversion possible.Main Features:Converts from coaxial BNC Works in a pair of unitsLightweight & portableImmune to EMICE CertifiedNo repeaters neededSD & HD models available.Contact Configurations:Triaxial 50 or 75 Ohms (Audio-Video connectors)Hybrid with: (3K.93C Series)2 fibre optic contacts2 signal contacts2 power contacts & ground
LEMO Media Converter:
VIEW DETAILS

Filter using tags

LEMO W-Series srew coupling underwater connectors with alignment key suitable for pressure upto 30 bars.Main Features:Screw coupling4 keying optionsIP686 sizesOver 9 shell stylesTemp. range -20 Deg C to 200 Deg CSolder or crimp contactsRugged housingContact Configurations:Multipole 2 to 64 contactsThermocouple 2 to 6 contactsFibre opticMulti or mixed contacts with:Co-axial 1 to 14 contactsFluidic 1 to 14 contactsFibre optic 1 to 14 contactsAdditional Information:Item Code: LEMO-W-Series
View Details
LEMO High Pressure Conne
V series connectors are screw coupling underwater connectors with stepped inserts for alignment suitable for pressure up to 30 bar (435.11 PSI).Main Features:Screw couplingMultipole with stepped insertsIP686 sizesOver 9 shell stylesTemp. range -20 deg C to 200 deg CSolder contactsRugged housingContact Configuration:UnipoleCoaxial 50 or 75 ohms.Multipole 2 to 48 contactsTriaxial 50 or 75 ohms.Multi or mixed contacts with:Coaxial 1 to 4 contactsAdditional Information:Item Code: LEMO-V-Series
View Details
LEMO High Pressure Conne
LEMO B-Series connectors are standard self-latching multipole connectors with alignment keys.Main Features:Push-Pull self-latchingIP 508 sizes13 keying options9 colour codingOver 60 shell stylesUL recognizedTemp. range -55 deg C to 250 deg CSolder, crimp or print contactsContact Configurations:Multipole 2 to 64 contactsThermocouple 2 to 64 contactsFibre opticFluidicMulti or mixed contacts with:Coaxial 1 to 14 contactsFluidic 1 to 14 contactsHigh voltage 2 to 21 contactsFibre optic 1 to 14 contactsAdditional Information:Item Code: LEMO-B-Series
View Details
LEMO Multipole Connector
REDEL P-Series self-latching plastic connectors with alignment key for medical applications.Main feature:Push-pull self-latching3 sizesSeveral keying options6 colour codingsOver 12 shell stylesTemp. range -50 deg C to 170 deg CIP 64/66 optionsWhite,gray or black outershellIP50Contact Configurations:Multipole 2 to 34 contactsVoltage mainsFluidicMixed contacts in 2P and 3P series with:Coaxial 1 contactHigh voltage 1 contactFiber optic 1 contactFluidic 1 or 3 contactsAdditional Information:Item Code: Redel-P-Series
View Details
REDEL Plastic Connectors
LEMO S-Series connectors are the original standard self-latching connectors with stepped inserts for alignment (of multipole version).Main Features:Push-Pull self-latching8 sizesMultipole with stepped inserts9 colour codingOver 50 shell stylesUL recognizedTemp. range -55 deg C to 250 deg CSolder, crimp or print contactsIP 50Contact Configurations:UnipoleCoaxial 50 & 75 ohms.Multipole 2 to 106 contactsTriaxial 50 & 75 ohms.High voltageThermocouple 2 to 6 contactsMulti or mixed contacts with:Coaxial 1 to 8 contactsHigh voltage 2 to 8 contactsAdditional Information:Item Code: LEMO-S-series
View Details
LEMO Multipole Connector
REDEL SP connectors are plastic Push-pull connectors. These circular plastic connectors are especially adapted for applications such as medical electronics and test & measurement. The SP series offer additional features: the latch sleeve is recessed into the connector body ensuring greater shock resistance of the product.Outershell of the connector is in Proprietary sulfone & it enables extensive sterilisation cycles of the product. Features & Benefits:Plastic shell made of Proprietary sulfoneBlind mating, scoop proofExtended resistance to sterilisationIncreased resistance to shockApplications:Medical electronicsTest & measurementIndustrial electronicsAutomotiveAdditional Information:Item Code: REDEL-SP-SeriesJune 6, 2017
View Details
REDEL Plastic Connectors
Watertight self-latching triaxial connectors with alignment key for TV camera applications. (UK Standards)Main Features: Push-pull self-latchingkeyingOver 10 shell stylesTemp. range -55 Deg C to 200 Deg CShieldedIP66Contact Configurations: Triaxial 50 & 75 OhmsAdditional Information:Item Code: LEMO-4M-Series
View Details
LEMO Audio-Video Connect
LEMO 03 Series screw coupling miniature underwater connectors suitable for pressure upto 60 bars.Main Features:Screw coupling2 keying options for multipoleIP68Over 20 shell stylesTemp. range -55 Deg C to 200 Deg CSolder or crimp contactsRugged housingContact Configurations: Multipole 2 to 4 contactsCoaxial 50 ohms.Additional Information:Item Code: LEMO-03-Series
View Details
LEMO High Pressure Conne
LEMO offers a full range of mixed electrical/fibre optic connectors for singlemode or multimode transmission. This product range is available with metal or plastic outer shells, as well as in a watertight version. The range is completed by the addition of a single channel fibre optic connector series. All LEMO fibre optic connectors use a plug and socket push-pull self-latching connection system, obviating the need for plug to plug adaptors. This is a major advantage of the LEMO technology over its competitors.LEMO connectors feature ceramic or metal ferrules for the fibre optic contacts to provide alignment for both single-mode and multi-mode fibres. They are manufactured to the highest precision in order to ensure optimum optical performances even in the most severe applications. Connectors available:Fibre optic single-modeFibre optic multi-modeMixed fibre optic + LVMixed fibre optic + coax + LVwith plastic outer shellwith aluminium outer shellWith stainless steel outer shellAdditional Information:Item Code: Fiber-optic-connectors
View Details
Fiber Optic Cable Connec
LEMO K-Series watertight self-latching multipole connectors with alignment key & rugged housing for extreme working conditions.Main Features:Push-Pull self-latching6 sizes9 keying options9 colour codingOver 28 shell stylesUL recognizedTemp. range -55 deg C to 250 deg CSolder, crimp or print contactsIP66/IP68Contact Configurations:Multipole 2 to 64 contactsThermocouple 2 to 64 contactsFibre opticMulti or mixed contacts with:Coaxial 1 to 14 contactsFluidic 1 to 14 contactsHigh voltage 1 to 21 contactsFibre optic 1 to 14 contactsAdditional Information:Item Code: LEMO-K-Series
View Details
LEMO Watertight Connecto
Wholesale Distributor & Distributor of Microdot Cable. Our product range also comprises of LEMO Self-latching Push-Pull Connectors, Plastic Connectors and Power Connectors. We are one of the known supplier of Microdot Cable.
View Details
Microdot Cable:
The LEMO SERBAL is a 4 channel multiplexer that makes HD/SDI to fibre conversion possible.Main Features:Converts from coaxial BNC Works in a pair of unitsLightweight & portableImmune to EMICE CertifiedNo repeaters neededSD & HD models available.Contact Configurations:Triaxial 50 or 75 Ohms (Audio-Video connectors)Hybrid with: (3K.93C Series)2 fibre optic contacts2 signal contacts2 power contacts & ground
View Details
LEMO Media Converter:
