Home Products LEMO High Voltage Connectors:
LEMO Y-Series single
LEMO Y-Series single
COD available

LEMO High Voltage Connectors:

Share with
Share this on :

Description

Product details

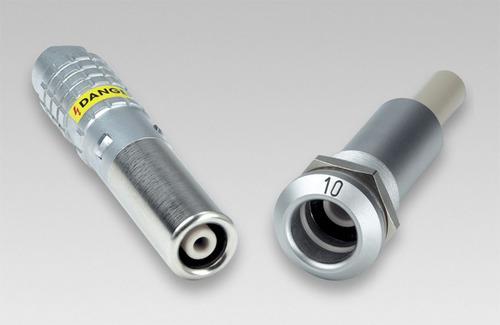

LEMO Y-Series single contact self-latching high voltage connector with test voltages from 5 to 70 KV DC. Main Features: Push-Pull self-latching 3 sizes Test voltage from 5 to 70KV d.c. Solder contacts Temp. range -55 Deg C to 250 Deg C Optional safety locking device IP50 Contact Configurations: Single HV Contact Additional Information: Item Code: LEMO-Y-Series

Keywords

Other Products

Related Products

LEMO W-Series srew coupling underwater connectors with alignment key suitable for pressure upto 30 bars. Main Features: Screw coupling 4 keying options IP68 6 sizes Over 9 shell styles Temp. range -20 Deg C to 200 Deg C Solder or crimp contacts Rugged housing Contact Configurations: Multipole 2 to 64 contacts Thermocouple 2 to 6 contacts Fibre optic Multi or mixed contacts with: Co-axial 1 to 14 contacts Fluidic 1 to 14 contacts Fibre optic 1 to 14 contacts Additional Information: Item Code: LEMO-W-Series
View Details
LEMO High Pressure Connectors - W Series:
V series connectors are screw coupling underwater connectors with stepped inserts for alignment suitable for pressure up to 30 bar (435.11 PSI). Main Features: Screw coupling Multipole with stepped inserts IP68 6 sizes Over 9 shell styles Temp. range -20 deg C to 200 deg C Solder contacts Rugged housing Contact Configuration: Unipole Coaxial 50 or 75 ohms. Multipole 2 to 48 contacts Triaxial 50 or 75 ohms. Multi or mixed contacts with: Coaxial 1 to 4 contacts Additional Information: Item Code: LEMO-V-Series
View Details
LEMO High Pressure Connectors - V Series:
LEMO B-Series connectors are standard self-latching multipole connectors with alignment keys. Main Features: Push-Pull self-latching IP 50 8 sizes 13 keying options 9 colour coding Over 60 shell styles UL recognized Temp. range -55 deg C to 250 deg C Solder, crimp or print contacts Contact Configurations: Multipole 2 to 64 contacts Thermocouple 2 to 64 contacts Fibre optic Fluidic Multi or mixed contacts with: Coaxial 1 to 14 contacts Fluidic 1 to 14 contacts High voltage 2 to 21 contacts Fibre optic 1 to 14 contacts Additional Information: Item Code: LEMO-B-Series
View Details
LEMO Multipole Connectors - B Series:
