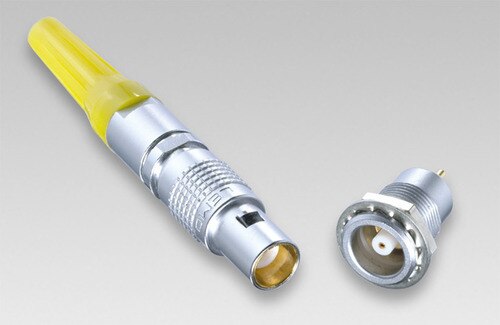

LEMO Miniature Coaxial Connectors

Share with
Share this on :

Description

Product details

Miniature Coaxial Connector Wholesale Distributor & Distributor of Miniature Coaxial Connector & LEMO Miniature Coaxial Connectors. Our product range also comprises of LEMO Self-latching Push-Pull Connectors, Plastic Connectors and Power Connectors. LEMO 0A coaxial self-latching connectors for video or telecommunication applications. Main Features: Push-Pull self-latching Over 27 shell styles Temp. range -55°C to 250°C Shielded Solder or crimp contacts Working frequency up to 3 Ghz @ 75 Ohms. IP50 Contact configurations: Coaxial 50 or 75 ohms. Additional Information: Item Code: LEMO-0A-Series

Keywords

Other Products

Related Products

LEMO W-Series srew coupling underwater connectors with alignment key suitable for pressure upto 30 bars. Main Features: Screw coupling 4 keying options IP68 6 sizes Over 9 shell styles Temp. range -20 Deg C to 200 Deg C Solder or crimp contacts Rugged housing Contact Configurations: Multipole 2 to 64 contacts Thermocouple 2 to 6 contacts Fibre optic Multi or mixed contacts with: Co-axial 1 to 14 contacts Fluidic 1 to 14 contacts Fibre optic 1 to 14 contacts Additional Information: Item Code: LEMO-W-Series
View Details
LEMO High Pressure Connectors - W Series:
V series connectors are screw coupling underwater connectors with stepped inserts for alignment suitable for pressure up to 30 bar (435.11 PSI). Main Features: Screw coupling Multipole with stepped inserts IP68 6 sizes Over 9 shell styles Temp. range -20 deg C to 200 deg C Solder contacts Rugged housing Contact Configuration: Unipole Coaxial 50 or 75 ohms. Multipole 2 to 48 contacts Triaxial 50 or 75 ohms. Multi or mixed contacts with: Coaxial 1 to 4 contacts Additional Information: Item Code: LEMO-V-Series
View Details
LEMO High Pressure Connectors - V Series:
LEMO B-Series connectors are standard self-latching multipole connectors with alignment keys. Main Features: Push-Pull self-latching IP 50 8 sizes 13 keying options 9 colour coding Over 60 shell styles UL recognized Temp. range -55 deg C to 250 deg C Solder, crimp or print contacts Contact Configurations: Multipole 2 to 64 contacts Thermocouple 2 to 64 contacts Fibre optic Fluidic Multi or mixed contacts with: Coaxial 1 to 14 contacts Fluidic 1 to 14 contacts High voltage 2 to 21 contacts Fibre optic 1 to 14 contacts Additional Information: Item Code: LEMO-B-Series
View Details
LEMO Multipole Connectors - B Series:
